Caso Design
Wine Cooler 41 bottles Caso WineDeluxe WD 41
Built-in | Built-in column
Adjustable temperature range: 5ºC to 20ºC
Dimensions: 89.15 cm (height) x 59.5 cm (width) x 57.5 cm (depth)
Dual cooling zones with digital control
2-year warranty
Choose options
Built-in | Built-in column
Adjustable temperature range: 5ºC to 20ºC
Dimensions: 89.15 cm (height) x 59.5 cm (width) x 57.5 cm (depth)
Dual cooling zones with digital control
2-year warranty
Built-in | Built-in column
Adjustable temperature range: 5ºC to 20ºC
Dimensions: 89.15 cm (height) x 59.5 cm (width) x 57.5 cm (depth)
Dual cooling zones with digital control
2-year warranty

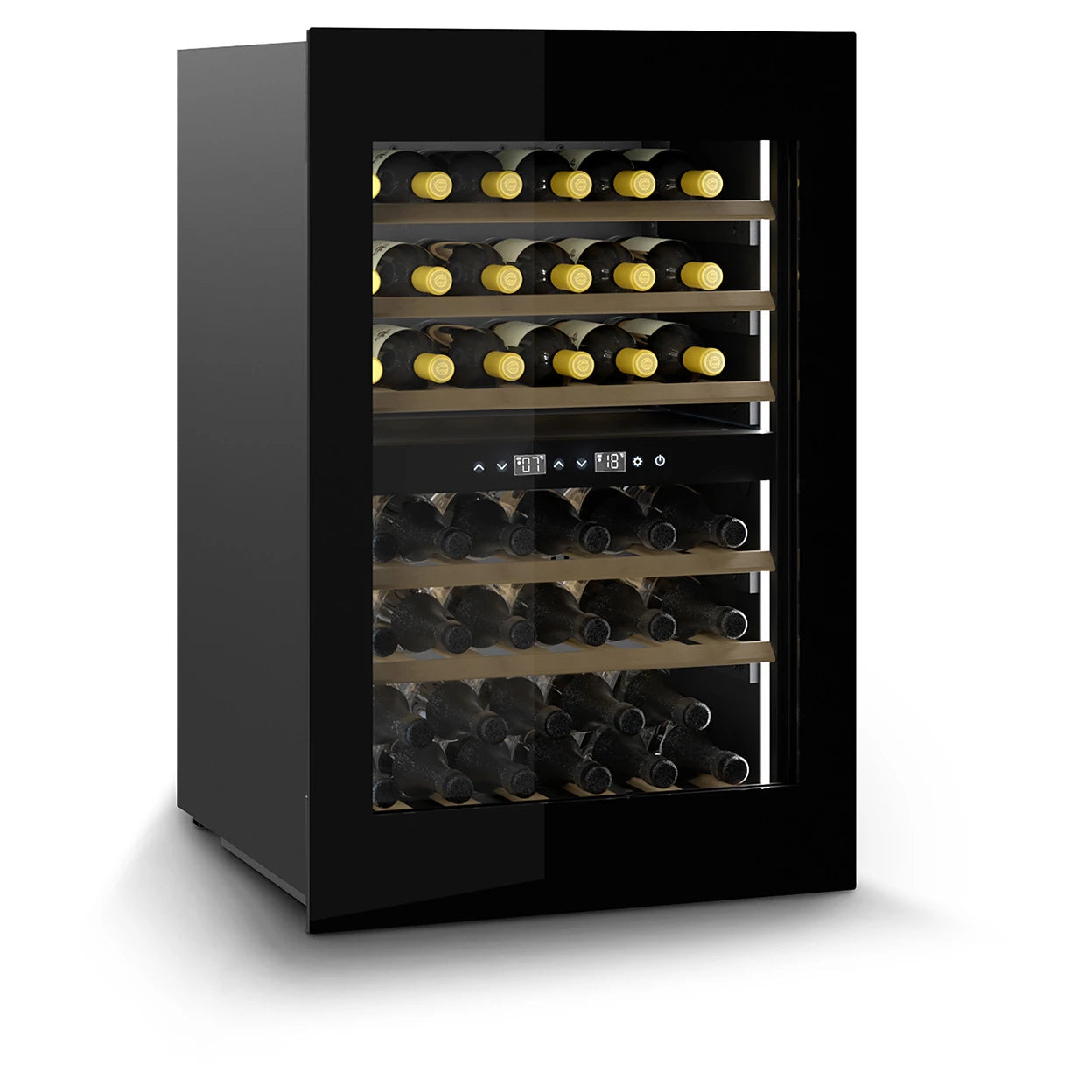

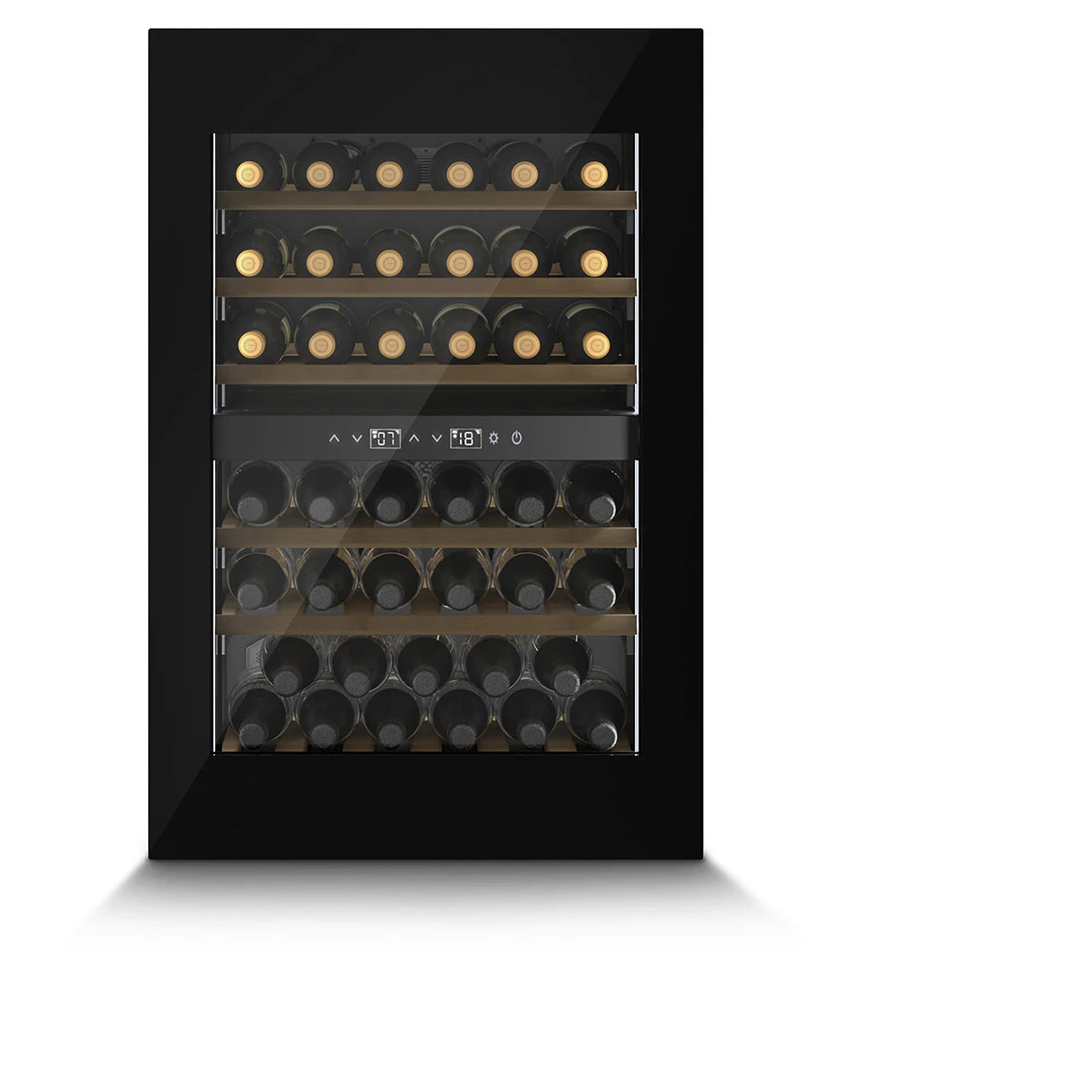

CASO Design WineDeluxe WD 41 built-in wine cooler: 41 bottles, two independent temperature zones from 5 to 20 °C, 88 cm niche height, handleless push-to-open door, triple-layer insulating glass with UV filter, metal presentation rack, activated carbon filter and Wi-Fi app control.
The mid-size built-in: CASO Design WineDeluxe WD 41
The CASO Design WineDeluxe WD 41 built-in wine cooler occupies the 88 cm niche and fills the gap many kitchens leave open: more than forty bottles without moving up to a full-height cabinet. The handleless push-to-open front and Soft-Close Hettich hinges keep the cabinetry line calm, while two independent temperature zones organise the collection by wine type.
Two separately controlled zones
Both zones are electronically adjustable between 5 and 20 °C, with active ventilation distributing the temperature evenly inside each compartment. The Sensor-Touch display shows both zones at once, and a door alarm reports temperature loss from an open door.
41 bottles – and a stage for the best of them
It takes up to 41 bottles of up to 76 mm in diameter, with 370 mm of usable bottle height at the top and 320 mm at the bottom. The six wooden shelves with integrated telescopic runners pull out smoothly, and a metal presentation rack is supplied for showing individual wines upright. The activated carbon filter looks after air quality inside.
Dimmable light and phone control
The white ambient LED strips along the sides are switchable across four levels (25%, 50%, 75%, 100%), enough to go from discreet background lighting to full display. The built-in Wi-Fi module lets the appliance be checked and set through the CASO app without opening the door.
Key features
- Built-in installation: designed for any 88 cm niche height.
- Capacity: up to 41 bottles (max. Ø 76 mm; bottle height 370 mm upper, 320 mm lower).
- Two independent temperature zones adjustable from 5 to 20 °C.
- Handleless push-to-open door with Soft-Close Hettich hinges.
- Compressor cooling with active ventilation.
- Aroma protection: triple-layer insulating glass with UV filter plus activated carbon filter.
- Presentation: metal bottle presentation rack included.
- Ambient lighting: switchable white LED strips with 4 intensity levels.
- Controls: Sensor-Touch display for both zones with LED readout.
- Safety: open-door alarm.
- Connectivity: built-in Wi-Fi module, control via the CASO app.
- Reversible door hinge.
Technical data
- Cooling technology: compressor with active ventilation.
- Temperature range: 5 – 20 °C (41 – 68 °F) per zone.
- Number of temperature zones: 2.
- Bottle capacity: 41.
- Shelves: 6, wooden with telescopic runners, plus a metal presentation rack.
- Controls: Sensor-Touch with LED display.
- Connectivity: built-in Wi-Fi module (CASO app).
- Power: 120 W.
- Voltage: 220-240 V~, 50 Hz.
- Annual consumption: 104 kWh/year.
- Energy efficiency class: F.
- Door: triple-layer insulating glass with UV filter; glass door frame.
- Door hinge: right, reversible.
- Materials: stainless steel and glass.
- Colour: black.
- Cable length: 110 cm. Schuko plug.
- Certifications: CE, GS.
- Weight: 55 kg.
- Niche dimensions (Width x Depth x Height cm): 56.0 x 56.0 x 87.65
- Dimensions (Width x Depth x Height cm): 59.5 x 57.5 x 89.15
Why choose the WineDeluxe WD 41?
- The size that was missing: 41 bottles is the capacity for anyone who has outgrown a small cooler but does not want a full-height cabinet.
- Store and display in one: six pull-out wooden shelves plus a metal presentation rack combine keeping with showing.
- Built in without compromise: even in a compact 88 cm niche it keeps two zones, UV-filter glass, an activated carbon filter and app control.
Frequently asked questions about the CASO Design WineDeluxe WD 41
- Is the WineDeluxe WD 41 intended for domestic or professional use?The model is aimed mainly at demanding domestic use. With 41 bottles and two zones it suits wine lovers and private collectors, and it can also be used in light professional settings such as an office or a small shop.
- What niche does it require?It is designed for an 88 cm niche height. Official niche dimensions are 560 mm wide, 876.5 mm high and 560 mm deep.
- What is the supplied metal rack for?It is a presentation accessory that allows individual wines to be displayed upright inside the appliance rather than lying on a shelf.
- Can the interior lighting be adjusted?Yes. The white ambient LED strips are switchable and offer four intensity levels: 25%, 50%, 75% and 100%.
- How does it differ from a smaller built-in model?Beyond holding more bottles, the larger interior allows a more generous split across two zones and the use of a presentation rack, which is not always provided in more compact formats.
| Brand | Caso Design |
| Cooling Technology | Compressor |
| Temperature Zones | 2 temperature zones |
| Device Type | Built-in, Built-in column |
| Temperature Range | 5ºC to 20ºC |
| Color | Black |
| Height | 89.15 cm |
| Width | 59.5 cm |
| Depth | 57.5 cm |
| Energy Efficiency Class | F |
| Warranty | 2-year warranty |
