Wine Cooler 166 bottles Dunavox Grande-166 Black

Built-in wine cooler Dunavox Grande-166 for 166 bottles, dual zone 5–12 °C and 12–20 °C, front ventilation for under-counter and installation in kitchen columns, telescopic wooden shelves, UV-protected triple glass door, and LED interior lighting – professional wine storage at 177 cm installation height.

High-capacity wine cooler for installation in modern kitchens

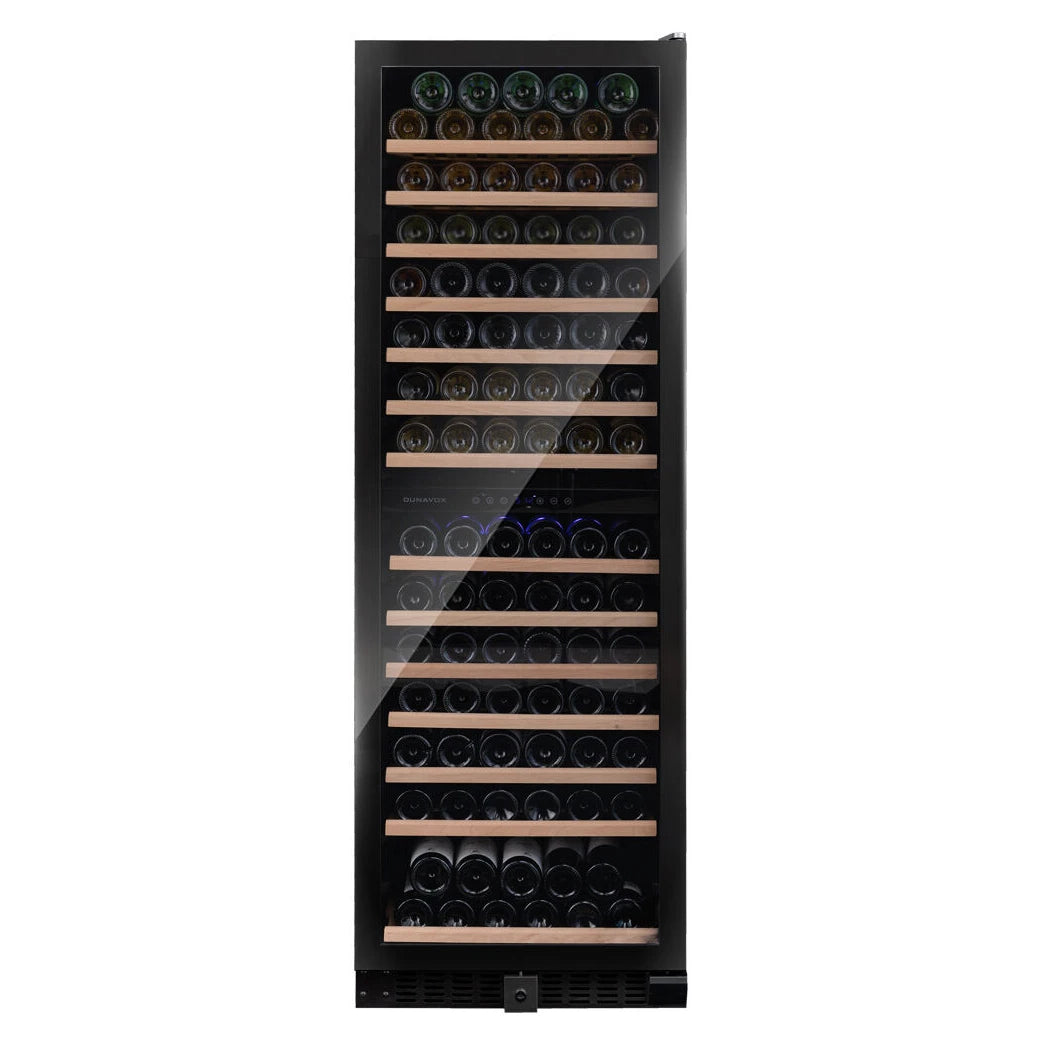

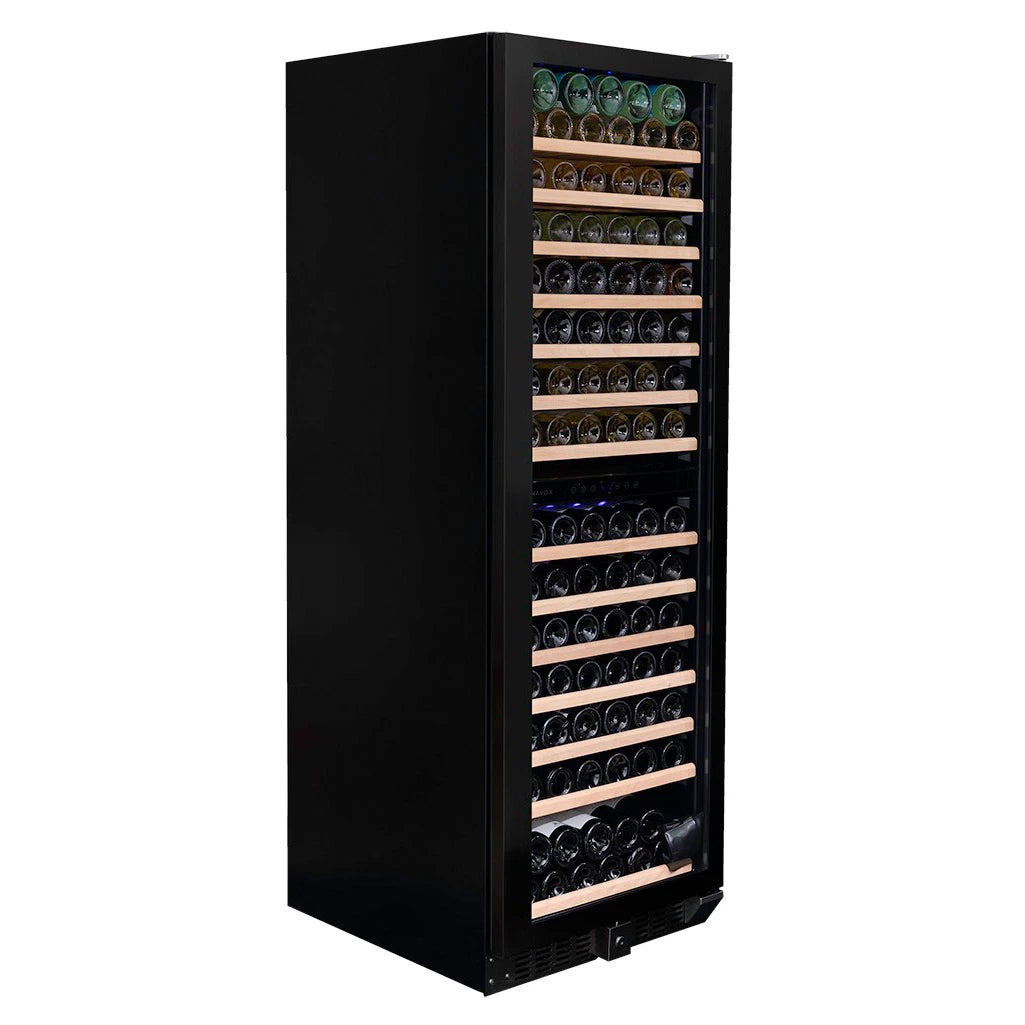

The Dunavox Grande-166 is a professional wine cooler with a capacity of 166 standard bottles (0.75 l Bordeaux), designed for seamless integration into kitchen units, column niches, and sophisticated residential projects. With an installation height of 177 cm and an appliance width of 59.5 cm, the model fits precisely into standardized tall cabinet niches and is operated via front grille ventilation – without the need for air clearance at the sides or rear wall.

The appliance can be used both freestanding and in a fully built-in capacity. The front ventilation allows for flush installation between kitchen wall units, next to ovens, or in room divider constructions – a requirement that is increasingly becoming standard in modern kitchen design. The reversible door with a hidden handle profile (DBK model) or classic stainless steel handle (SDSK model) allows for flexible adjustment to the installation side.

Two independent temperature zones for red and white wine

The Grande-166 features two separately adjustable temperature zones: the upper zone is designed for cooler temperatures between 5 and 12 °C and is suitable for white wines, rosé wines, and sparkling wines. The lower zone operates in the range of 12 to 20 °C and offers optimal storage conditions for red wines as well as collections requiring aging. The upper zone must always be set colder than the lower one – control is provided via an LED touch screen display with clear zone separation. Fan-assisted cooling with an inverter compressor ensures uniform temperature distribution within both zones and reacts precisely to fluctuations in the ambient temperature.

Construction and interior

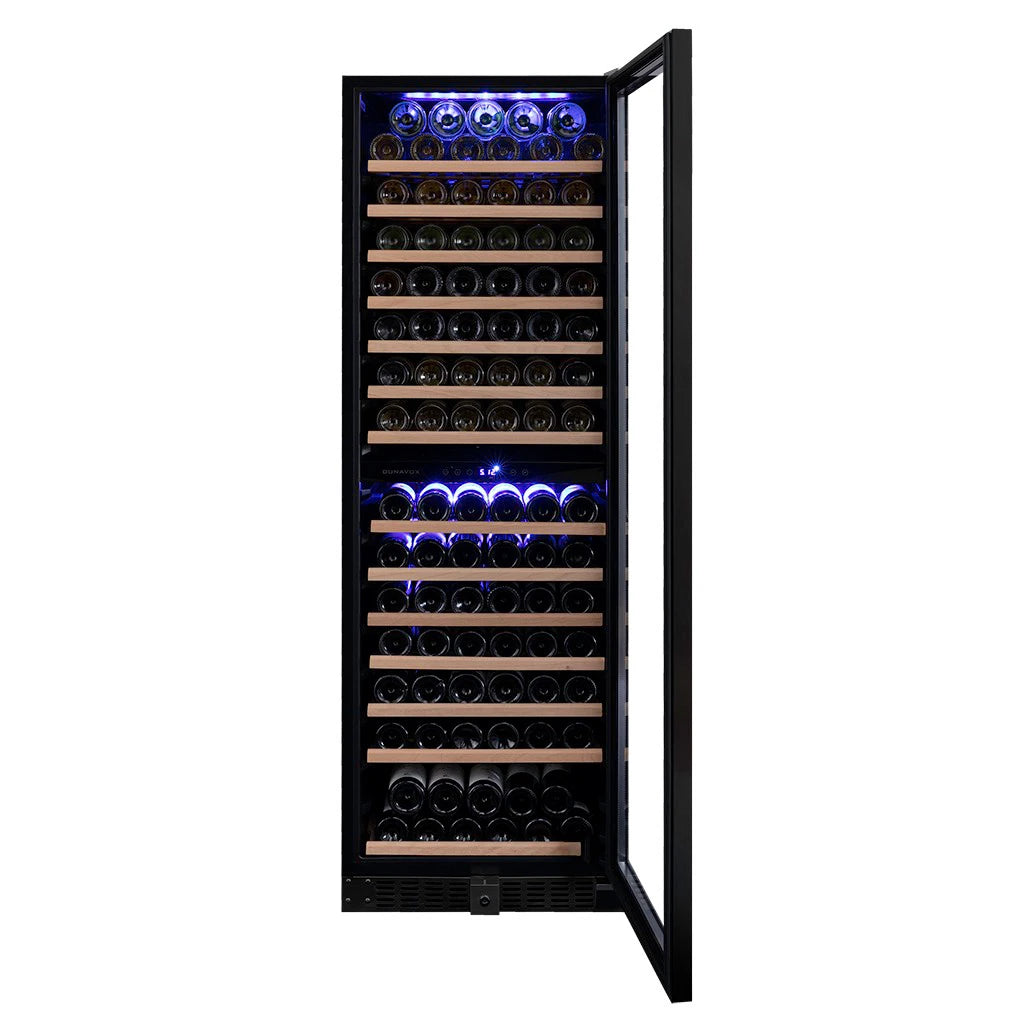

The 14 telescopic wooden shelves of the Grande-166 can be individually removed and moved, so that even bottles in special formats – magnum bottles, wide Burgundy bottles, or tall sparkling wine bottles – can be positioned securely. The bottom shelf is designed as a presentation level and allows bottles to be stored in an upright position. The interior with white LED lighting is designed for visual inspection of the stock without affecting sensitive wine storage through UV radiation. The glass front consists of three layers with UV protection treatment.

Installation planning and built-in requirements

For the installation of the Dunavox Grande-166, a niche with a minimum width of 605 mm, a minimum depth of 730 mm, and a minimum height of 1,765 mm is required. The front ventilation at the bottom of the appliance must not be covered or restricted – this area must remain clear at all times. The appliance is not suitable for placement in unheated rooms or outdoor areas: operation is designed for ambient temperatures between 16 and 38 °C (climate class ST – subtropical). A winter function is not available.

Energy consumption and noise emission

The annual energy consumption of model DX-166.428D is 146 kWh/year with an energy efficiency class G according to EU Regulation 2019/2016. The noise level is 39 dB(A), noise emission class C. Despite the size of the appliance and the dual zone cooling, the inverter compressor operates with controlled speed, which reduces start-up peaks and stabilizes continuous operation.

Model variants and finishes

The Grande-166 is available in three finishes: Black (DBK) with a flush handle profile, Stainless Steel (SDSK) with a visible handle bar, as well as in a RAL special color coating for projects with specific design requirements. All variants share the same technical structure and built-in dimensions.

Main Features

• Capacity: 166 standard bottles (0.75 l Bordeaux) on 14 telescopic wooden shelves.
• Dual zone: Upper zone 5–12 °C, lower zone 12–20 °C, independently adjustable.
• Cooling technology: Fan-assisted cooling with inverter compressor cooling for precise and uniform temperature management.
• Installation type: Freestanding or built-in in kitchen niches and columns; front grille ventilation, no side air clearance required.
• Glass front: UV-protected triple glass door, reversibly hinged, tinted.
• Interior lighting: White LED light for uniform illumination of the entire interior.
• Operation: LED touch screen display with separate zone control.
• Climate class: ST (subtropical) – suitable for ambient temperatures from 16 to 38 °C.
• Finishes: Black (hidden handle), Stainless Steel (handle bar), RAL custom color.
• Total volume: 418 liters.

Technical Data

• Cooling technology: Fan-assisted cooling, inverter compressor cooling.
• Temperature range: 5–12 °C (upper zone) / 12–20 °C (lower zone).
• Number of temperature zones: 2 (independently adjustable).
• Control: LED touch screen display.
• Annual energy consumption: 146 kWh/year.
• Energy efficiency class: G.
• Noise level: 39 dB(A), noise emission class C.
• Climate class: ST (subtropical, 16–38 °C).
• Total volume: 418 liters.
• Capacity: 166 bottles (0.75 l Bordeaux).
• Shelves: 14 telescopic wooden shelves (incl. presentation shelf).
• Lighting: White LED light.
• Glass door: UV-protected, 3 glass layers, reversible, tinted.
• Rated power: 220–240 V, 50 Hz, 1.3 A.
• Net weight: 102 kg.
• Installation type: Freestanding or built-in; front grille ventilation.
• Color / Finish: Black.
• Dimensions (Width x Depth x Height cm): 59.5 x 68.0 x 177.0

Why buy the Dunavox Grande-166 wine cooler?

1. Professional storage capacity in a residential format: 166 bottles on 14 wooden shelves in a single, flush-integrated appliance – the Grande-166 meets the requirements of a private wine cellar without the need for a separate room. For collectors with mixed stock, the dual zone is not a convenience feature but a technical requirement for correct storage temperatures.
2. Seamless built-in solution for modern kitchen planning: Front ventilation and standardized built-in dimensions allow for integration into existing kitchen units without additional construction measures. Architects and kitchen planners value this model because it can be installed like a household appliance while offering the functionality of a professional wine storage unit.
3. Long-term operational reliability through inverter technology: The inverter compressor operates with controlled speed instead of start/stop cycles. This means more constant internal temperatures, lower vibration stress for the bottles, and more stable energy consumption over the entire life of the appliance.

Frequently Asked Questions about the Dunavox Grande-166 wine cooler

• Is the Dunavox Grande-166 designed for private or professional use? The model is designed for both usage scenarios. In the private sector, it is aimed at discerning wine collectors and design-oriented households that require a full built-in solution with high capacity. In the professional environment, it is suitable for bars, boutique hotels, restaurants, and wine merchants looking for a discreet, permanently integrated storage solution with controlled temperature zones.
• Which bottle formats can be stored in the Grande-166? The appliance is primarily designed for 0.75-liter Bordeaux standard bottles and, in this configuration, offers space for 166 bottles. Thanks to the removable telescopic wooden shelves, shelf distances can be individually adjusted to accommodate magnum bottles (1.5 l), wider Burgundy bottles, or champagne bottles – the total capacity is reduced accordingly.
• What built-in requirements must I consider in kitchen planning? The Grande-166 requires a built-in niche with a minimum width of 605 mm, a minimum depth of 730 mm, and a minimum height of 1,765 mm. The front ventilation at the bottom of the appliance must be permanently accessible and must not be covered by plinth panels or furniture parts. Side or rear air supply is not required.
• How uniformly does the inverter compressor maintain the set temperature? The inverter compressor continuously adapts its cooling performance to actual demand instead of working in fixed on/off cycles. This results in a more stable interior temperature with smaller fluctuation ranges, reduces vibrations, and protects the wine bottles more reliably than conventional compressor technology with a fixed cycle.
• How does the Grande-166 differ from single zone wine coolers of comparable size? The essential difference lies in the independent zone regulation: while a single zone appliance keeps all bottles at a uniform temperature, the Grande-166 allows for the simultaneous storage of red wines (12–20 °C) and white wines or sparkling wines (5–12 °C) in separate areas. For a mixed stock, a single zone appliance is not a full alternative due to its design.
