Wine Cooler 18 bottles Climadiff CBU18DZBM Dual-zone

Climadiff CBU18DZBM built-under wine cooler: 18 bottles, two independent 5–20 °C temperature zones, fan-assisted cooling, triple-glazed UV-resistant door and a compact width of just 29.5 cm.

Compact dual-zone wine cooler for serving every wine at the right temperature

The Climadiff CBU18DZBM wine cooler is a built-under solution designed to store and prepare up to 18 bottles for serving in a space just 29.5 cm wide. Its slim format makes efficient use of compact kitchen units while providing separate storage conditions for red, white and sparkling wines.

Its two independent temperature zones, both adjustable from 5 to 20 °C, allow each compartment to be adapted to the type of wine stored. The upper zone holds up to 6 bottles and the lower zone up to 12, making it easy to organise the collection according to serving preferences.

Stable temperature with fan-assisted cooling

The compressor cooling system with fan-assisted air circulation distributes cool air evenly throughout the interior. This circulation helps reduce temperature variations and maintain consistent conditions around the bottles, an essential factor in preserving the wine’s natural development and organoleptic qualities.

The anti-vibration system limits the transfer of movement to the contents of the wine cooler, allowing the bottles to rest undisturbed. The temperature memory restores the selected settings after a power interruption, while the temperature alarm warns of any deviation that could affect storage conditions.

Protection from light and careful bottle storage

The door features triple tempered glazing, low-emissivity glass and UV protection. This combination helps limit both radiation and heat transfer from outside, protecting the wine from two factors that could compromise its proper storage.

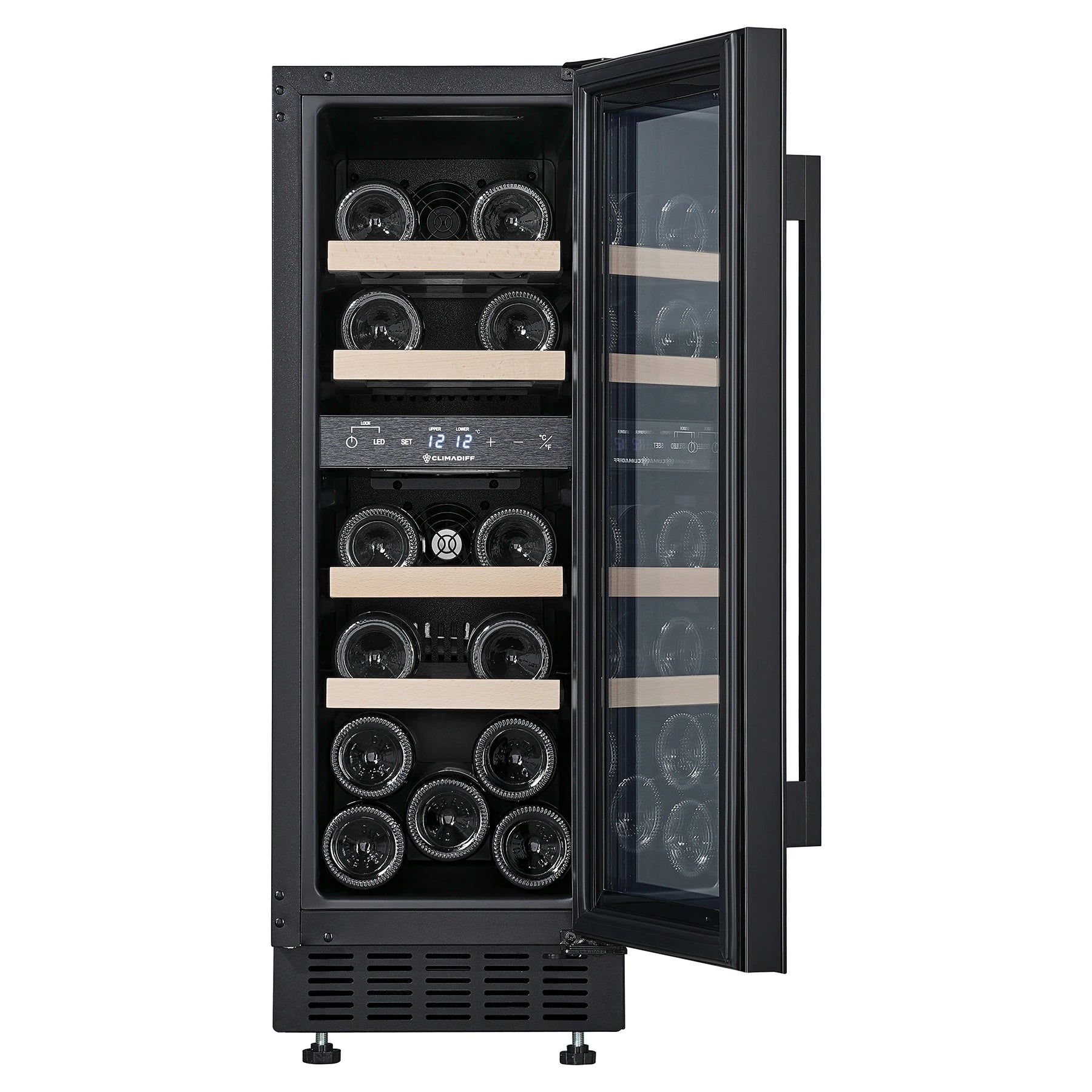

The four sliding wooden shelves provide stable and careful support for the bottles. Wood also helps absorb minor vibrations and creates a sober presentation consistent with the traditional principles of wine storage.

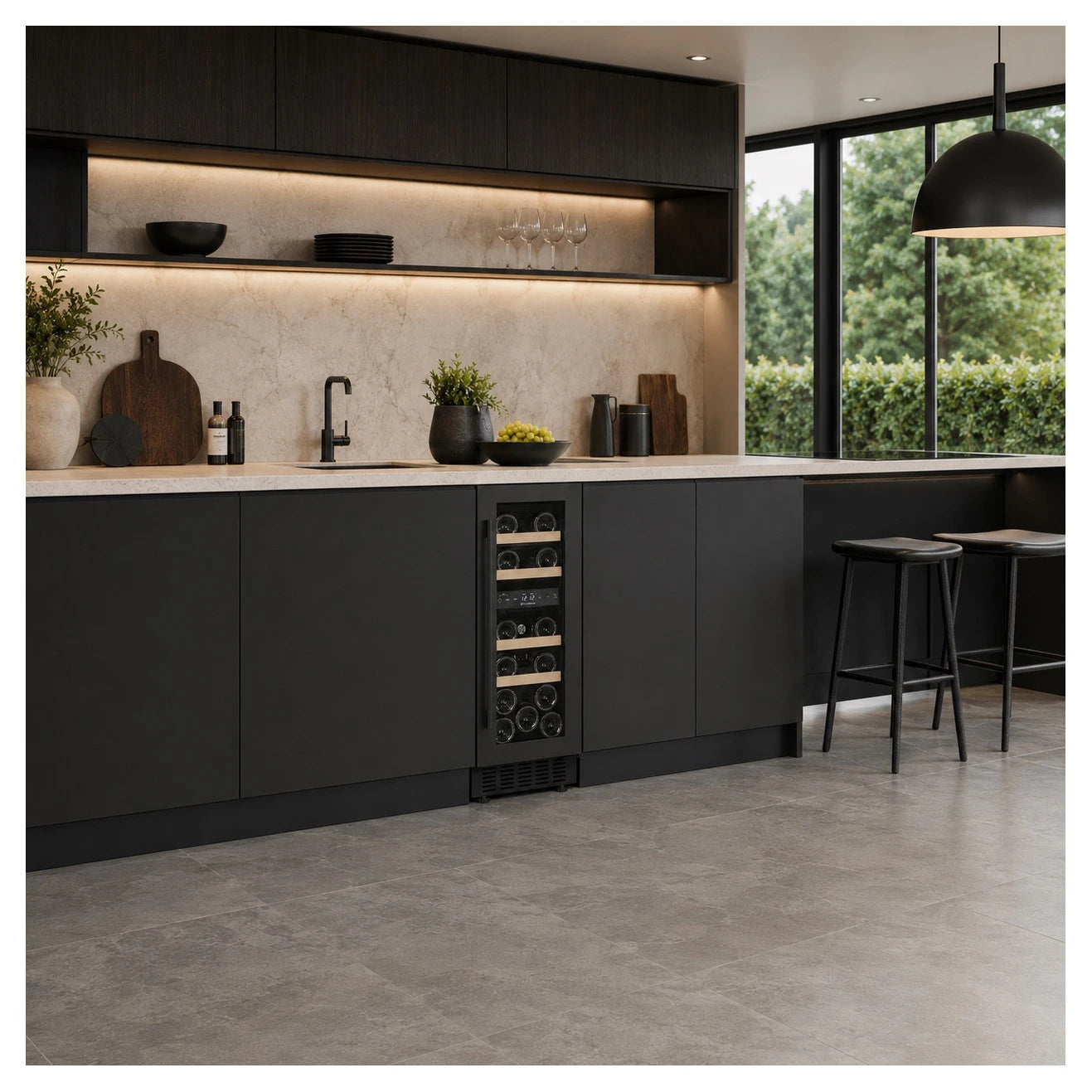

Built-under installation with front ventilation

The Climadiff CBU18DZBM has been specifically designed as a built-under wine cooler. Its front ventilation system expels warm air through the lower section, allowing the appliance to be installed inside a cabinet when the manufacturer’s installation dimensions and requirements are respected.

The integrated plinth allows for a neat fit with the surrounding cabinetry, while the reversible door makes it possible to adapt the opening direction to the kitchen layout. Its matt black finish and vertical handle create a discreet, functional appearance.

Simple controls and collection management with Vinotag

The electronic control panel positioned between the two zones allows both temperatures to be viewed and adjusted independently. It also provides access to the child lock and white LED lighting, which can remain permanently switched on to display the bottles without generating the heat associated with conventional lighting.

Compatibility with the free Vinotag application allows bottles to be registered and the wine cooler inventory to be managed digitally. This makes it easier to review the contents of the collection and keep track of the wines available.

Main features

• Capacity: up to 18 standard wine bottles.
• Interior distribution: 6 bottles in the upper zone and 12 bottles in the lower zone.
• Two independent zones: adjustable from 5–20 °C in each compartment.
• Stable cooling: compressor system with fan-assisted cooling.
• Bottle protection: anti-vibration system and temperature alarm.
• Protective door: triple-glazed tempered glass with UV protection and Low-E treatment.
• Shelves: 4 sliding wooden shelves.
• Lighting: white LED lighting with permanent display mode.
• Safety: child lock and temperature memory.
• Inventory management: compatible with the free Vinotag application.
• Installation: built-under design with front ventilation and integrated plinth.
• Reversible door: adaptable to the available kitchen layout.

Technical specifications

• Product type: built-under service wine cooler.
• Capacity: 18 standard bottles.
• Net volume: 52 litres.
• Number of zones: 2 independent temperature zones.
• Temperature range: 5–20 °C in the upper zone and 5–20 °C in the lower zone.
• Cooling technology: compressor with fan-assisted cooling.
• Anti-vibration system: yes.
• Controls: electronic panel with temperature display.
• Safety functions: temperature alarm, child lock and temperature memory.
• Door: reversible, matt black finish and vertical bar handle.
• Glazing: triple tempered glass with UV protection and Low-E treatment.
• Shelves: 4 sliding wooden shelves.
• Lighting: white LED lighting with switch and permanent display mode.
• Compatibility: Vinotag application for wine inventory management.
• Ventilation: front ventilation.
• Plinth: integrated, with a 5 cm recess and a height of 7.6 cm.
• Feet: 4 adjustable feet, up to 1.5 cm.
• Annual energy consumption: 98 kWh/year.
• Energy efficiency class: F.
• Energy efficiency index: 122%.
• Noise level: 39 dB(A), acoustic class C.
• Climate class: SN-ST, suitable for ambient temperatures from 10 to 38 °C.
• Power: 140 W.
• Voltage: 220–240 V.
• Refrigerant: R600a, 18 g charge.
• Power cable length: 150 cm.
• Net weight: 30 kg.

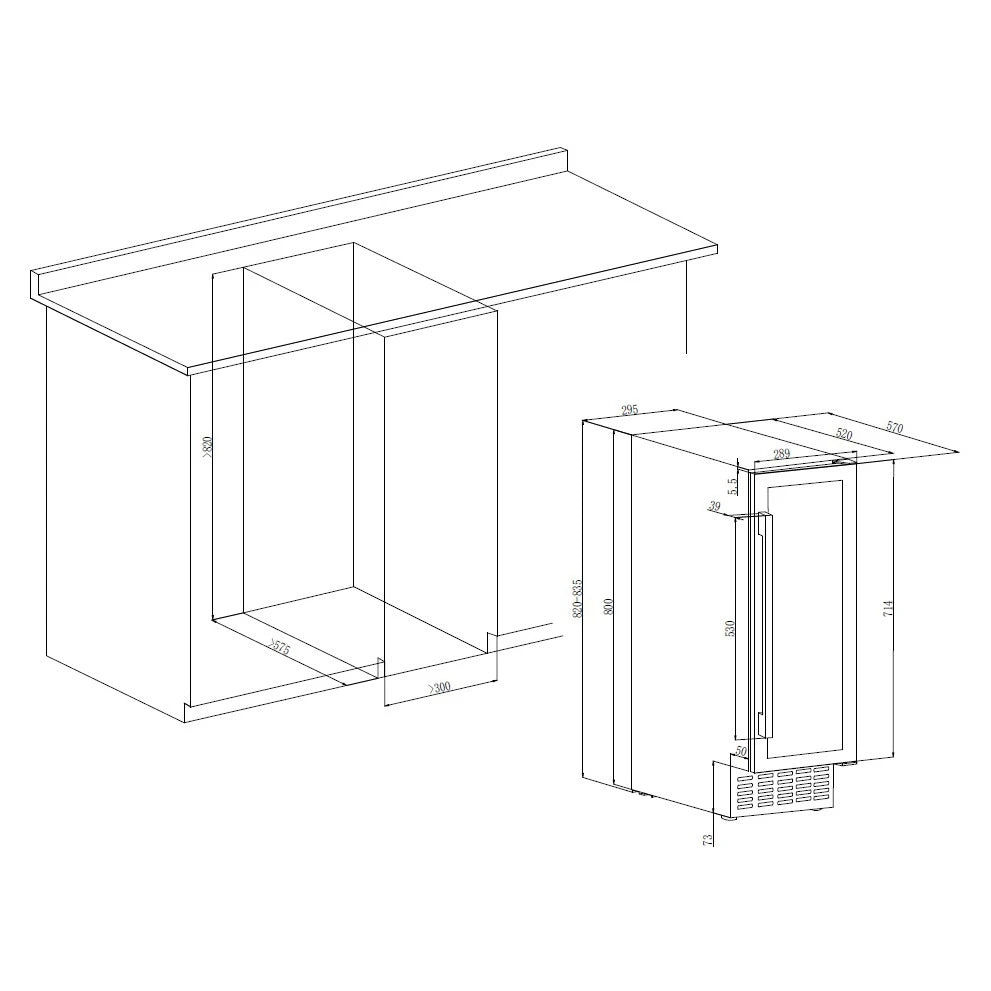

• Installation dimensions (Width x Depth x Height cm): 30 x 57.5 x 82
• Dimensions (Width x Depth x Height cm): 29.5 x 57 x 82

Why buy the Climadiff CBU18DZBM dual-zone wine cooler?

1. Serve different wines under suitable conditions: its two independent compartments allow white, sparkling and red wines to be stored simultaneously at different temperatures, without having to use the same setting for the entire collection.
2. Make the most of a narrow built-under space: its 29.5 cm width allows an 18-bottle wine cooler to be installed in kitchens where a conventional 60 cm model would not fit.
3. Protect every bottle with greater precision: fan-assisted cooling, anti-vibration technology, the UV-resistant door and temperature alarm help maintain a stable and controlled environment for the wine.

Frequently asked questions about the Climadiff CBU18DZBM dual-zone wine cooler

• Is this wine cooler designed for domestic or professional use? The Climadiff CBU18DZBM is primarily intended for domestic use, although it is also suitable for light professional environments such as offices, small wine shops or hospitality spaces that need to store a limited selection of wines at different serving temperatures.
• Can red and white wines be stored at the same time? Yes. Its two zones are independently controlled and both can be adjusted from 5 to 20 °C, allowing one compartment to be used for white or sparkling wines and the other for red wines.
• How does fan-assisted cooling benefit wine storage? Fan-assisted cooling circulates cold air throughout the interior, helping to reduce temperature differences between the various levels of each compartment and maintain more consistent conditions around the bottles.
• Is this wine cooler quiet enough for an open-plan kitchen? The Climadiff CBU18DZBM has a noise output of 39 dB(A), which is moderate for a compressor wine cooler. It can be installed in an open-plan kitchen, although its operating sound may still be noticeable in particularly quiet environments.
• Does it require special ventilation for built-under installation? The wine cooler uses front ventilation and is designed for built-under installation. The lower ventilation grille must remain unobstructed, and an installation space of 30 x 57.5 x 82 cm must be respected to ensure correct heat dissipation.
