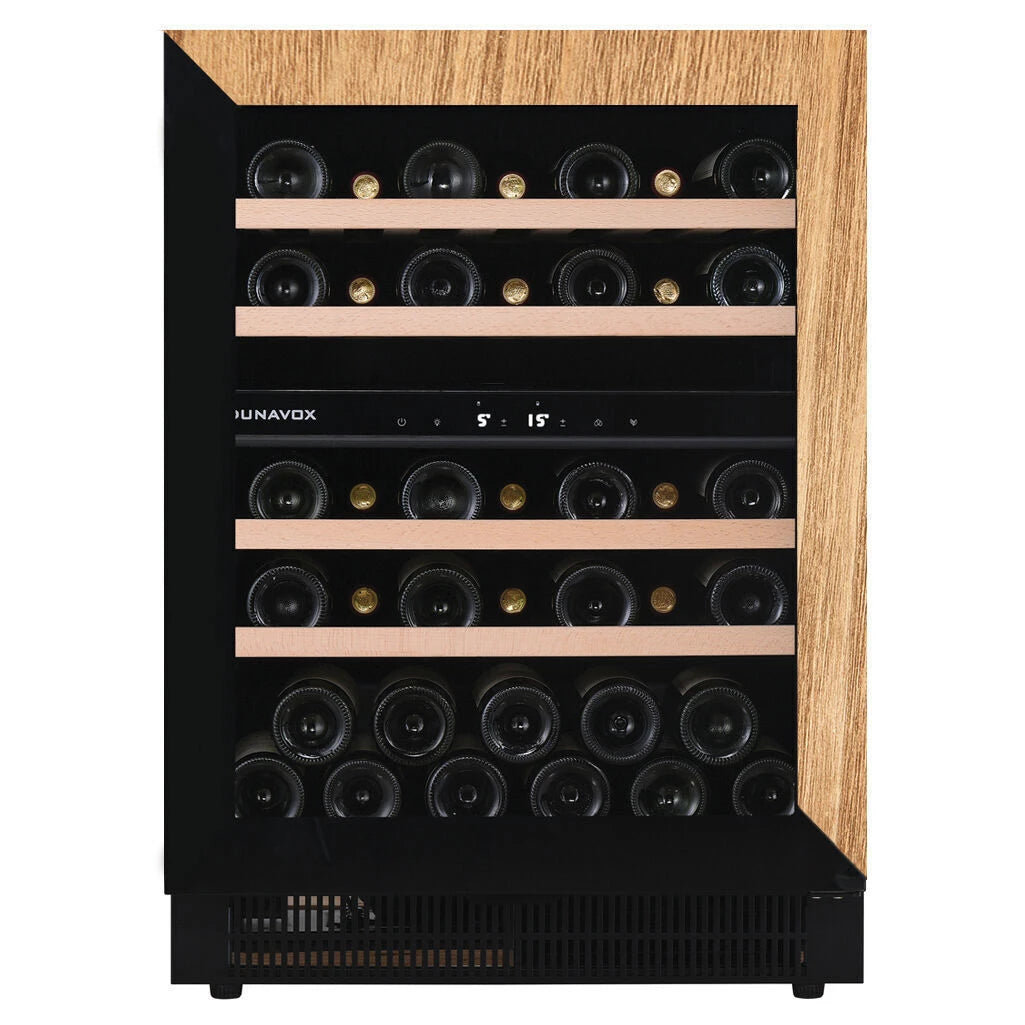

Wine Cooler 35 bottles Dunavox Flow-39.OP Panel Ready

Wine cooler 35 Bottles Dunavox Flow-39.OP – fully integrated under-counter built-in cooler with dual zone 5–18 °C, push-to-open mechanism, UV-protected double glass door, inverter compressor, and multi-LED lighting for precise wine storage in kitchen base units.

Fully integrated under-counter wine cooler for modern kitchen architecture

The Dunavox Flow-39.OP wine cooler is a built-in cooler fully integrated into the kitchen base unit, specifically designed for flush installation behind a furniture front. Thanks to the push-to-open mechanism, any visible handle is eliminated – the appliance blends seamlessly into the kitchen front, meeting the highest requirements for contemporary cooling design. Front ventilation via the integrated plinth area allows for full embedding into the base unit row without exposed side openings.

The model is aimed at kitchen planners, architects, and demanding private users who view professional wine storage not as a compromise, but as an integral part of their interior design concept. The overlay door front (overlay plate) allows for the mounting of a customer-specific furniture front, so that the appliance visually disappears completely within the kitchen carcass.

Dual-zone technology for precise temperature control

The Flow-39.OP features two independent temperature zones: the upper zone is designed for a colder range (5–10 °C), while the lower zone is for a warmer range (10–18 °C). Both zones are controlled separately via the LED touchscreen control element located on the front of the appliance, allowing for precise temperature settings in real time. The upper zone must always be set colder than the lower zone – this configuration is technically required and corresponds to the physical logic of the internal air circulation.

The utilized inverter compressor with fan-assisted cooling ensures uniform temperature distribution throughout the interior. The inverter drive regulates compressor performance continuously, contributing to lower energy consumption and quieter operation. Additionally, an integrated heating function is present, which keeps the temperature stable even in colder ambient temperatures – relevant for installation in unheated areas within climatic limits.

Capacity, shelf system, and interior features

The Dunavox Flow-39.OP offers space for up to 35 standard wine bottles (0.75 l) on pull-out telescopic wooden shelves. The telescopic mechanism allows for convenient removal and storage of bottles without moving the entire contents. The shelves are sturdily constructed and, through the wooden surface, offer both a secure hold and an aesthetically high-quality presentation of the bottles.

The multi-LED interior lighting is selectable in three colors – white, amber, and blue – allowing for individual styling of the interior atmosphere or functional lighting during access. The UV-protected double glass door protects the stored wines from harmful UV radiation and simultaneously supports visual monitoring of the contents without opening the door.

Installation, ventilation, and technical requirements

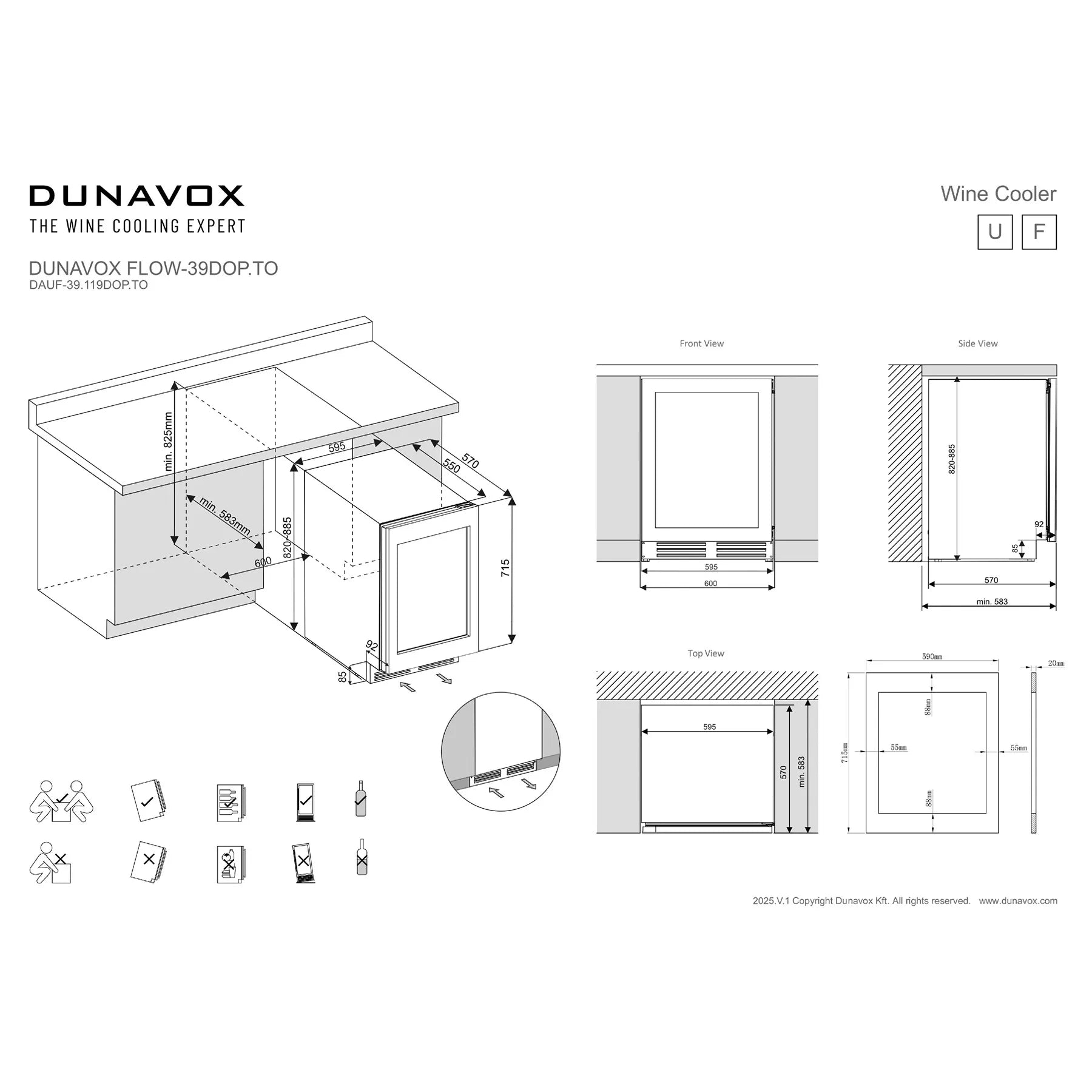

The appliance is designed exclusively as a fixed built-in under-counter appliance and must not be operated freestanding. The required niche width is 600 mm, with a minimum depth of 583 mm. The installation height is variably adjustable via adjustable feet (10–70 mm), allowing for exact alignment with the under-counter construction. Front ventilation via the plinth area is an essential installation requirement – side or rear ventilation openings are not required, which significantly simplifies planning in closed cabinet rows.

The door hinge direction is reversible, and the utilized Hettich soft-close hinges ensure precise, damped closing of the door – a detail that ensures the longevity of the door mechanics, particularly in a built-in situation.

Energy consumption and operating values

The annual energy consumption is 105 kWh/year; the energy efficiency class is F according to EU Regulation 2019/2016. The noise level is 40 dB(A), which corresponds to a technically solid value for a compact under-counter appliance with compressor cooling and dual-zone operation. The climate class allows for operation at ambient temperatures of 16–38 °C (subtropical zone).

Main Features

• Capacity: 35 standard wine bottles (0.75 l Bordeaux format).
• Dual zone: upper zone 5–10 °C, lower zone 10–18 °C, separately adjustable via LED touchscreen.
• Installation type: fully integrated under-counter built-in with overlay front (overlay plate for customer's own furniture front).
• Opening mechanism: push-to-open – no visible handle, full integration into the kitchen front.
• Cooling technology: fan-assisted cooling with inverter compressor and integrated heating function.
• Ventilation: front ventilation via plinth element – full installation in a closed base unit row possible.
• Shelves: pull-out telescopic wooden shelves for convenient storage and removal.
• Lighting: multi-LED (white, amber, blue), selectable.
• Glass door: UV protection, double glazing, reversible door hinge with Hettich soft-close hinges.
• Energy consumption: 105 kWh/year, energy efficiency class F.
• Noise level: 40 dB(A).
• Connectivity: no WiFi / no smart app connection.

Technical Specifications

• Cooling technology: fan-assisted cooling, inverter compressor.
• Temperature range: 5–10 °C (upper zone) / 10–18 °C (lower zone).
• Temperature zones: 2 (dual zone, independently controllable).
• Control: LED touchscreen control panel.
• Heating function: yes (integrated).
• Annual energy consumption: 105 kWh/year.
• Energy efficiency class: F.
• Noise level: 40 dB(A) – noise class C.
• Climate class: subtropical zone (16–38 °C ambient temperature).
• Rated power: 220–240 V, 50 Hz, 0.6 A.
• Total volume: 113 l.
• Capacity: 35 standard wine bottles (0.75 l).
• Shelves: pull-out telescopic wooden shelves.
• Lighting: multi-LED (white, amber, blue).
• Glass door: UV-protected, double glazing, reversible door hinge.
• Hinges: reversible soft-close hinges (Hettich).
• Opening mechanism: push-to-open.
• Installation type: built-in, under-counter (fixed).
• Installation position: under-counter.
• Ventilation: front ventilation (plinth area).
• Door front: overlay (overlay plate for customer's own furniture front).
• Connectivity: none (no WiFi, no app).
• Net weight: 50 kg.
• Dimensions (Width x Depth x Height cm): 59.5 x 55.0 x 82.0

Why buy the Dunavox Flow-39.OP wine cooler?

1. Full integration into kitchen architecture: The Flow-39.OP disappears behind a customer's own furniture front and is opened exclusively via the push-to-open mechanism. The result is a seamless kitchen front without visible appliance outlines – a decisive advantage for all who view built-in appliances not as a compromise, but as a consistent design element.
2. Two temperature zones in a compact under-counter format: Those who wish to store white and red wines simultaneously at different temperatures normally require considerably more floor space. The Flow-39.OP delivers this functionality in a standard under-counter format of 60 cm width – a technically sophisticated solution for demanding wine storage in a private kitchen environment.
3. Long-term protection of the wine collection: The inverter compressor ensures constant and low-vibration cooling, the UV-protected glass door shields the interior from light influence, and the heating function ensures stable temperatures even at lower room temperatures. This combination protects the stored bottles long-term against the primary damaging factors – temperature fluctuations, vibration, and UV radiation.

Frequently Asked Questions about the Dunavox Flow-39.OP wine cooler

• Is the Dunavox Flow-39.OP suitable for private or professional use? The model is primarily aimed at private use in modern kitchen-living areas, but it is equally suitable for professional environments with an under-counter kitchen concept, such as office kitchens, hotel suites, or high-end gastronomy areas with an integrated kitchenette. For demanding wine collectors who value full integration into the fitted kitchen, this model represents a precise and architecturally convincing solution.
• Which types of wine can be stored simultaneously in this appliance? Thanks to the two independent temperature zones, white wines, rosé wines, and sparkling wines can be stored in the upper zone (5–10 °C), while red wines and fuller white wines can be stored in the lower zone (10–18 °C) simultaneously and at their respective optimal storage temperatures. The upper zone must always be set colder than the lower zone.
• What are the installation requirements for building in the Flow-39.OP? The appliance is intended exclusively as a fixed built-in under-counter appliance and must not be operated freestanding. The installation niche must have a width of at least 600 mm and a depth of at least 583 mm. Ventilation occurs exclusively via the appliance front (plinth area), so no side or rear openings are required in the installation situation. The adjustable feet (10–70 mm) allow for precise height adjustment to the kitchen base unit.
• How quiet is the Dunavox Flow-39.OP during operation? The measured noise level is 40 dB(A), which corresponds to noise class C. For a compact under-counter appliance with compressor cooling and an active fan in a dual-zone configuration, this is a technically appropriate value. The utilized inverter compressor regulates power on demand and contributes to smooth running during continuous operation.
• How does the Dunavox Flow-39.OP differ from single-zone under-counter wine coolers? Unlike single-zone models, which only maintain a uniform temperature throughout the entire interior, the Flow-39.OP offers two separately controllable temperature zones in the same built-in size. This allows for the simultaneous storage of different types of wine at their respective ideal temperatures without having to install a second appliance. Furthermore, this model features an integrated heating function that ensures the stability of the internal temperature at lower room temperatures – a function that simpler models usually do not have.
