Wine Cooler 46 bottles Dunavox Flow-46H

Wine cooler 46 Bottles Dunavox Flow-46H with dual zone 5–12 °C / 12–20 °C, front ventilation for under-counter or freestanding installation, telescopic wooden shelves, triple glass door with UV protection, and multi-LED lighting for professional wine storage in kitchen base units.

Precise built-in wine cooler for the modern kitchen

The Dunavox Flow-46H wine cooler is a full-featured under-counter wine cooler, designed for seamless integration into kitchen base units with a standard width of 60 cm. With appliance dimensions of 59.5 × 59.0 × 82.0 cm and front ventilation via the plinth, it can be installed without side or rear clearance – a prerequisite for installation in continuous kitchen rows or kitchen islands. Flush installation under a worktop creates a closed front line that harmonizes architecturally with modern kitchen concepts.

Dual zone control for different types of wine

This model features two independently controllable temperature zones: the upper zone is set to 5–12 °C and is suitable for white wines as well as sparkling wines; the lower zone operates in the range of 12–20 °C for red wines and aged bottle stocks. Both zones are operated via an LCD touchscreen display on the front of the appliance. The control electronics allow for precise temperature control, whereby the upper zone must always be set cooler than the lower one – a technically based operating principle that ensures stable storage conditions for both wine types simultaneously.

Construction and interior

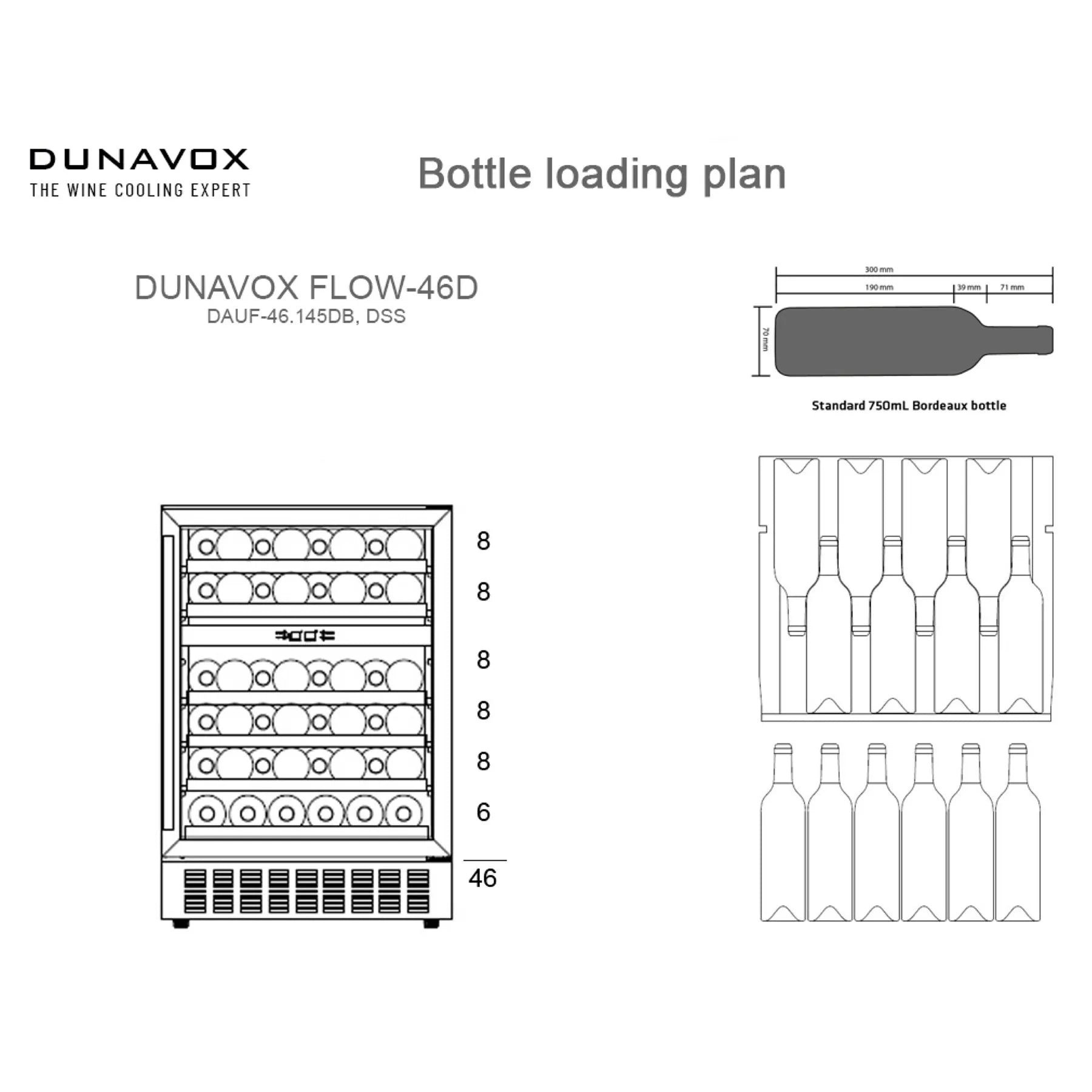

The interior is fitted with telescopic wooden shelves, which can be fully pulled out from the appliance, allowing for convenient loading even when the unit is built-in. The capacity of 46 standard bottles (0.75 l Bordeaux format) is distributed over six levels: five rows of eight bottles each and a bottom level for six bottles, as shown in the official bottle layout plan. The multi-LED lighting in white, amber, and blue is switchable and allows for both functional illumination and a subtle presentation of the cellar contents behind the glass front.

Glass front and UV protection

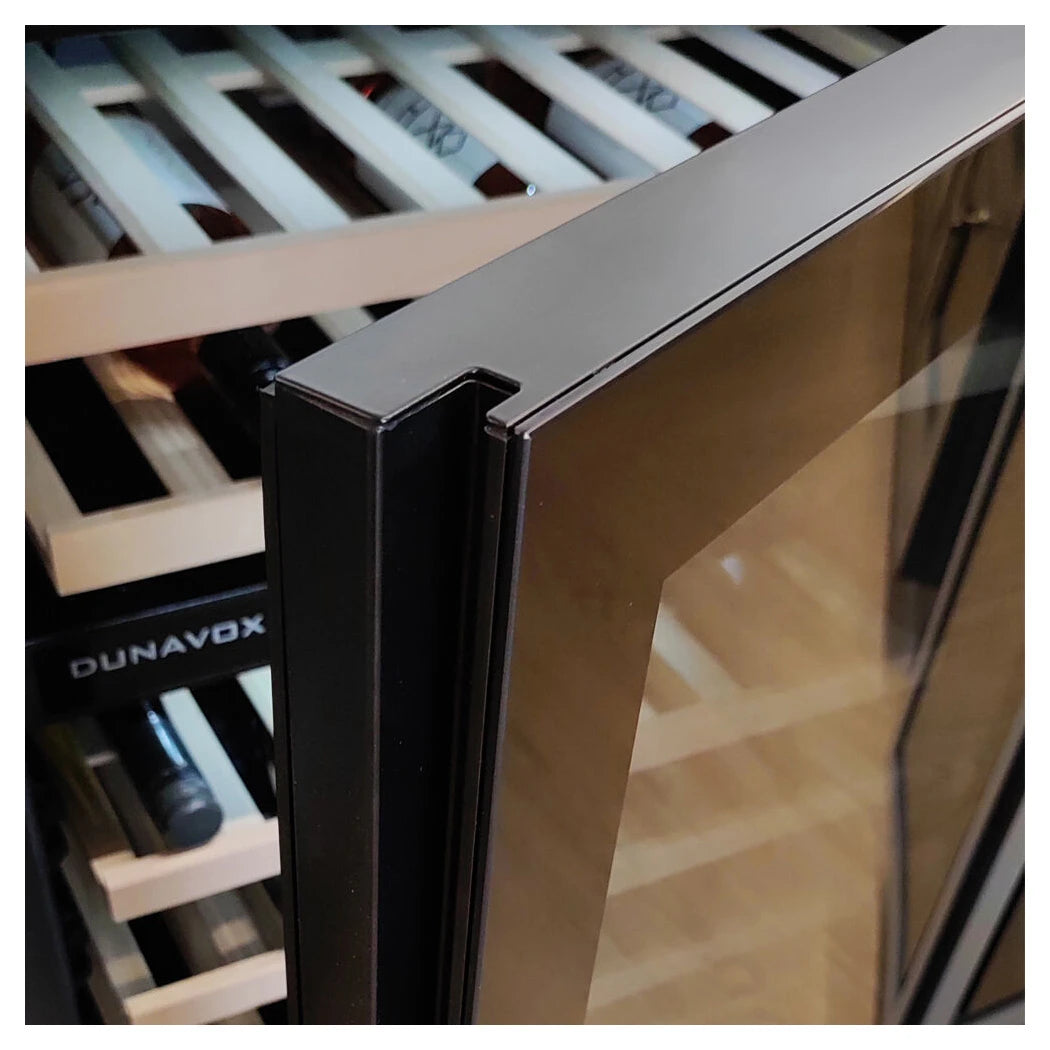

The door construction is based on triple glazing with UV protection, which filters incoming light radiation and thus prevents quality loss in the stored wines caused by light. The frameless black door frame with a concealed handle creates a discreet front appearance that blends into dark or neutral kitchen environments. The door hinge is reversible, which increases installation flexibility. The seal of the triple glazing is clearly visible in the close-up detail (Image 3): precisely joined frame profiles with full-surface sealing.

Fan-assisted compressor cooling with front ventilation

The fan-assisted compressor cooling ensures uniform temperature distribution throughout the interior. The integrated heating function complements the system for operation at low ambient temperatures – relevant for installation sites with seasonally fluctuating room temperatures. The climate class covers the subtropical and tropical range (16–38 °C ambient temperature). Front plinth ventilation is the only installation requirement: no minimum distance to side or rear walls is required.

Placement and installation situation

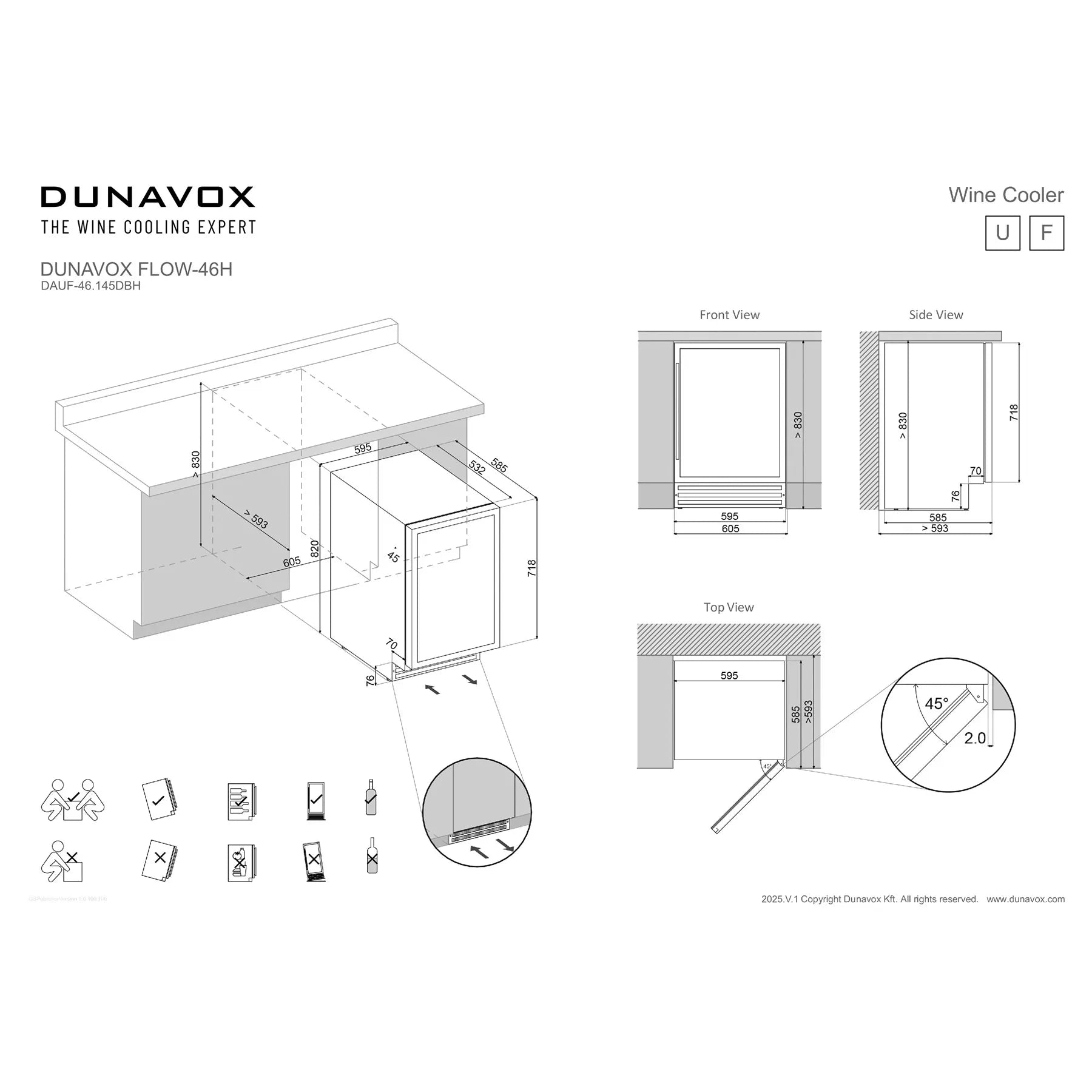

The Flow-46H can be installed as an under-counter unit under a worktop or as a freestanding unit. The installation drawing shows the required niche dimensions: at least 605 mm width, more than 593 mm depth, and at least 830 mm height. The adjustable feet (10–70 mm) allow for precise height adjustment for a flush finish with the work surface. The unit is not intended for installation in a tall cabinet column.

Main Features

• Capacity: 46 standard wine bottles (0.75 l Bordeaux format) on six shelf levels.
• Dual zone: upper zone 5–12 °C, lower zone 12–20 °C, independently controllable via LCD touchscreen.
• Installation type: under-counter or freestanding, front ventilation via plinth – no side or rear clearance required.
• Telescopic wooden shelves: fully extendable for convenient loading when built-in.
• Cooling technology: fan-assisted compressor cooling with integrated heating function for extended climate class (16–38 °C).
• Glass front: triple glazing with UV protection, concealed handle, reversible door hinge.
• Multi-LED lighting: switchable in white, amber, and blue.
• Noise level: 39 dB(A), noise class C.

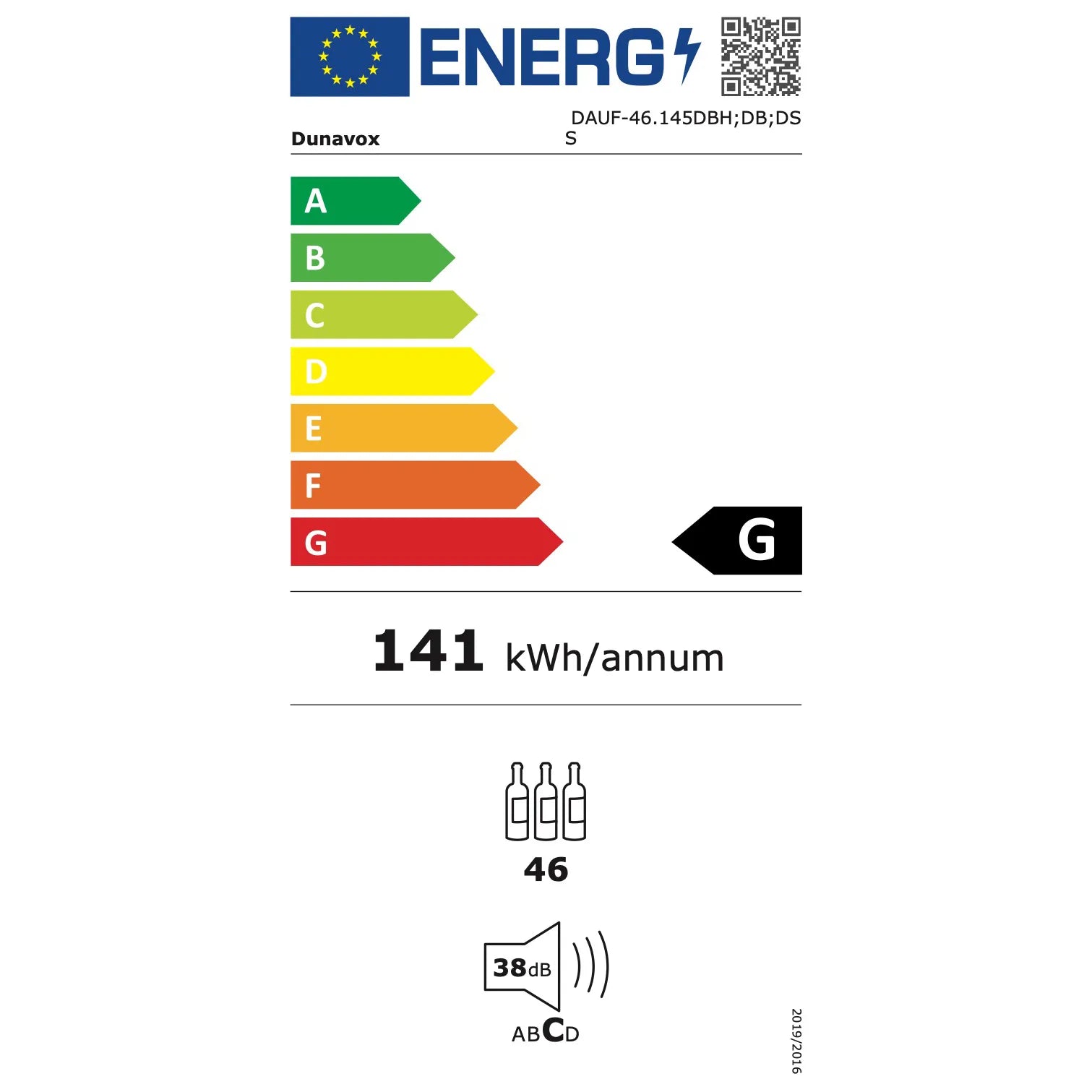

• Energy consumption: 141 kWh/year, energy efficiency class G.
• Color: black.

Technical Specifications

• Cooling technology: fan-assisted compressor cooling with integrated heating function.
• Temperature range: 5–12 °C (upper zone) / 12–20 °C (lower zone).
• Temperature zones: 2 independent zones.
• Control: LCD touchscreen.
• Capacity: 46 standard wine bottles (0.75 l).
• Total volume: 133 l.
• Annual energy consumption: 141 kWh/year.
• Energy efficiency class: G.
• Noise level: 39 dB(A) – Class C.
• Climate class: subtropical / tropical (16–38 °C ambient temperature).
• Refrigerant: R600a.
• Shelves: telescopic wooden shelves, extendable.
• Lighting: multi-LED (white, amber, blue), switchable.
• Glass door: triple glazing with UV protection, reversible door hinge.
• Opening system: concealed handle.
• Rated power: 220–240 V, 50 Hz, 0.5 A.
• Net weight: 45.0 kg.
• Installation type: under-counter or freestanding, front ventilation.
• Color and finish: black.
• Dimensions (Width x Depth x Height cm): 59.5 x 59.0 x 82.0

Why buy the Dunavox Flow-46H wine cooler?

1. Optimal integration into kitchen base units: when planning a coherent kitchen concept, you need appliances that fit seamlessly into base cabinets. The front ventilation of the Flow-46H allows for installation without air vents on the sides or back wall – the result is a continuous, uninterrupted kitchen front.
2. Separate storage conditions for red and white wine: those who regularly store different types of wine benefit from two independently regulated zones in a single appliance with a 46-bottle capacity – without having to rely on a second wine cooler.
3. Durable construction for demanding environments: the triple glazing with UV protection, the pull-out wooden shelves, and the heating function for low ambient temperatures make the Flow-46H a technically complete under-counter unit that can also be used in professional or gastronomic projects.

Frequently Asked Questions about the Dunavox Flow-46H wine cooler

• Is the Dunavox Flow-46H suitable for private or professional use? The Dunavox Flow-46H is designed for both areas of application. It is suitable for demanding private users and wine collectors looking for a technically full-featured under-counter solution for their kitchen, as well as for professional projects in gastronomy, hotel construction, or kitchen planning by architecture and interior design studios.
• Which types of wine can be stored simultaneously in this appliance? Thanks to the two independently regulated temperature zones, white wines and sparkling wines can be stored in the upper zone (5–12 °C) and red wines and aged wines in the lower zone (12–20 °C) simultaneously and under optimal conditions. Simultaneous storage of both wine categories in a single appliance is thus possible.
• What installation requirements apply for building it under a worktop? The Flow-46H requires a niche width of at least 605 mm, a depth of more than 593 mm, and a clear height of at least 830 mm for under-counter installation. Since ventilation takes place exclusively via the front of the plinth, no side distance and no rear wall clearance are required. The unit can alternatively be set up as a freestanding unit.
• How loud is the Dunavox Flow-46H during operation? The noise level of the Flow-46H is 39 dB(A), which corresponds to noise class C according to the EU labeling regulation. This value is typical for a compressor wine cooler of this capacity and design and is suitable for installation in kitchen-living areas.
• How does the Dunavox Flow-46H differ from single-zone wine coolers of comparable size? In contrast to single-zone models, which only provide a uniform temperature throughout the interior, the Flow-46H allows for the simultaneous storage of wines of different categories at their respective suitable temperatures. Furthermore, it has an integrated heating function that ensures stable operation even at low ambient temperatures from 16 °C – a feature that is often missing in simpler models.
